Anvil International 0500173083
Brand Name: Anvil®
- MPN: 0500173083
- ICEPN: GRI 0500173083
- Min Order Qty: 1
- Qty Interval: 1
-

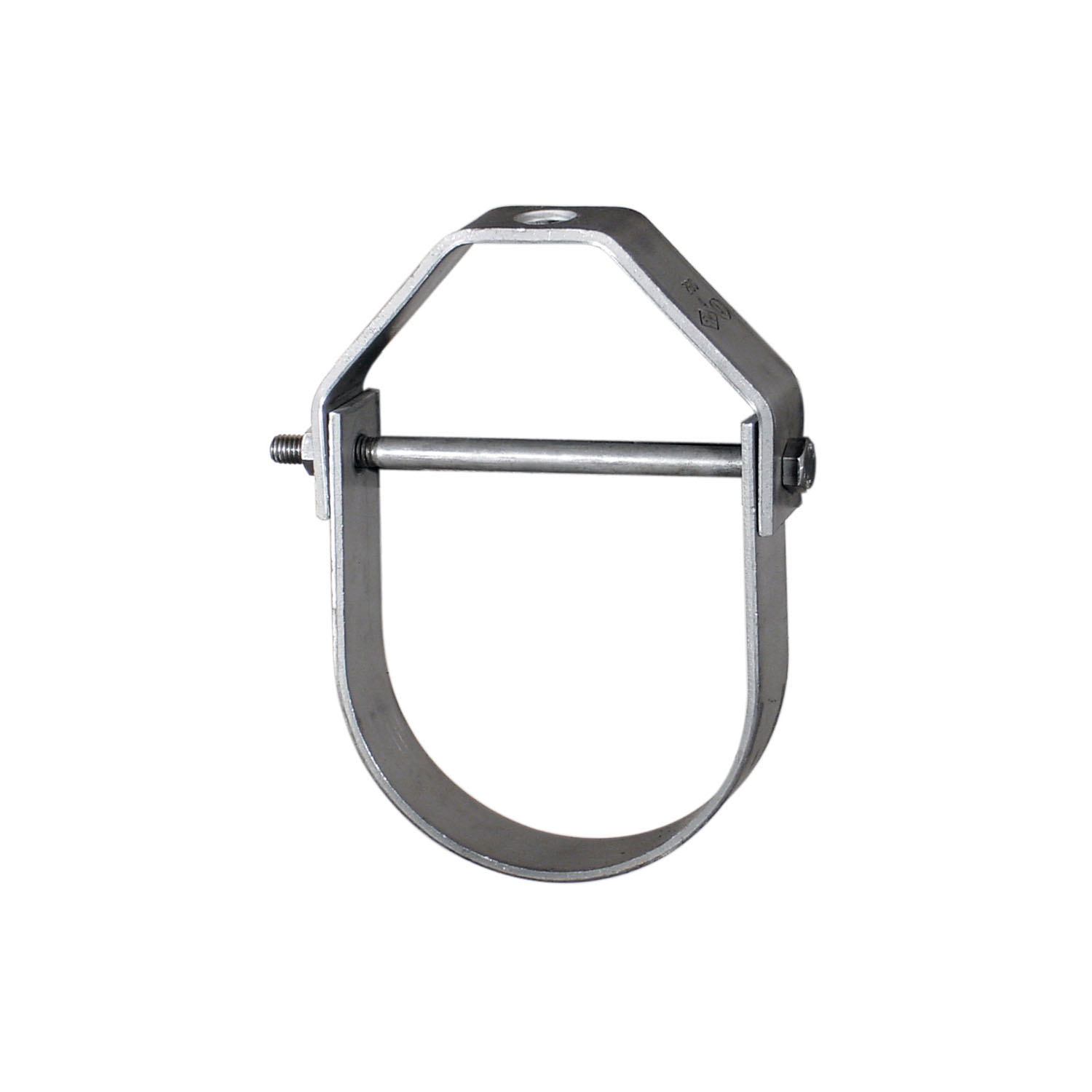

Anvil® FIG 260 Adjustable Clevis Hanger, 3 in, 1/2 in Rod, 1350 lb, Carbon Steel, Black
-
- DESCRIPTION
- FEATURES
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Tighten upper nut after adjustment
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
- SPECIFICATIONS
- DOCUMENTS
-
-
Anvil® Clevis Hanger, Adjustable, Series: FIG 260, 3 in Pipe, 1/2 in Rod, 1350 lb, Carbon Steel, Black
| Type | : | Adjustable |
| Series | : | FIG 260 |
| Pipe Size | : | 3 in |
| Rod Size | : | 1/2 in |
| Load Capacity | : | 1350 lb |
| Material | : | Carbon Steel |
| Finish | : | Black |
