ASC Engineered Solutions 0500320049

Brand Name: Anvil®

  • MPN: 0500320049
  • ICEPN: GRI 0500320049
  • Min Order Qty: 1
  • Qty Interval: 1

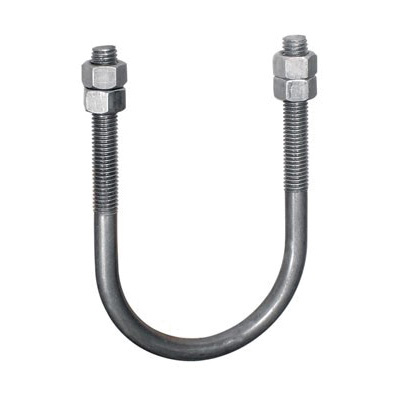

  • Anvil® 0500320049 FIG 137 Standard U-Bolt, 1-1/4 in Pipe, 3/8 in, Galvanized, Carbon Steel

  • /ASSETS/WEB_THEMES//ICE_INC/images/loading.gif

  • DESCRIPTION
  • Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 3/8 in, 1-11/16 in Inside Width, Carbon Steel, 2-1/8 in Thread Length, Galvanized, 1-1/4 in Pipe, 1460 lb Tensile

  • FEATURES
    • For support or guide of heavy loads often employed in power, process plant and marine service
    • 365 lb side load at 650 deg F
    • 1460 lb normal load at 650 deg F, 1144 lb normal load at 750 deg F

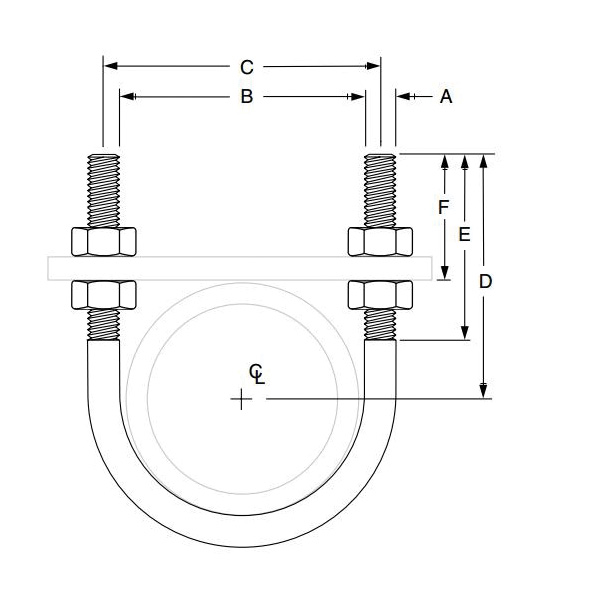

  • SPECIFICATIONS
  • Inside Width      :      1-11/16 in
    Measurement System      :      Imperial
    Series      :      FIG 137
    Tensile Strength      :      1460 lb
    Thread Length      :      2-1/8 in
    Pipe Size      :      1-1/4 in
    Diameter - Thread Size      :      3/8 in
    Finish      :      Galvanized
    Type      :      Standard
    Material      :      Carbon Steel
  • DOCUMENTS
