Merit Brass A65110L-128
Brand Name: Merit Brass
- MPN: A65110L-128
- ICEPN: SSF A65110L-128
- Min Order Qty: 1
- Qty Interval: 1
-

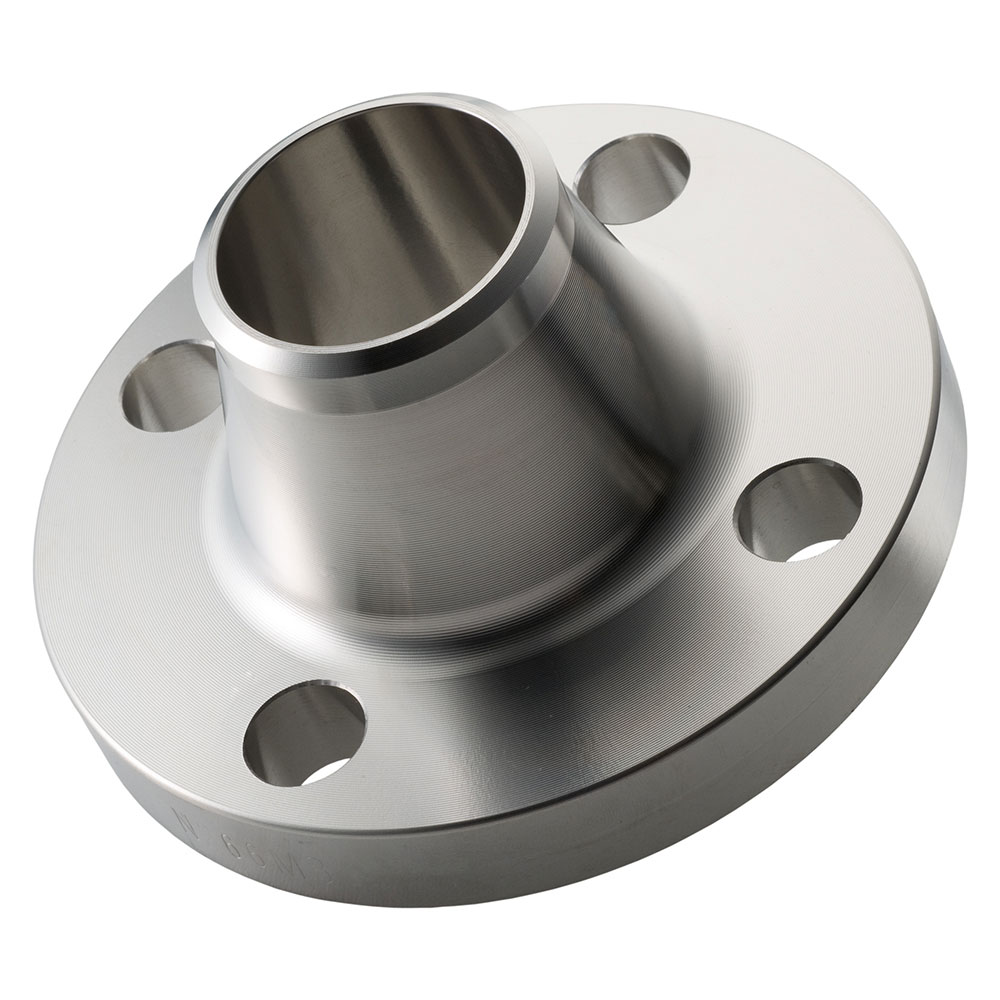

Merit Brass A65110L-128 Raised Face Weld Neck Flange, 8 in, Forged 316/316L Stainless Steel, 150 lb, SCH 10S Bore, Import
-
- DESCRIPTION
- FEATURES
- 3/4 in Dia bolt
- SPECIFICATIONS
- DOCUMENTS
-
-
-
Merit Brass Weld Neck Flange, Raised Face, 8 in Nominal, 7.98 in Inside Dia, 1.12 in Thickness, SCH 10S Bore, 11-3/4 in Bolt Circle, 8 Bolt Holes, 1 in, 13-1/2 in Outside Dia, 150 lb, 10-1/4 in Hub Dia, 4.38 in Length Through Hub, Forged 316/316L Stainless Steel, Import
| Bolt Circle Diameter | : | 11-3/4 in |
| Bolt Hole Size | : | 1 in |
| Hub Diameter | : | 10-1/4 in |
| Inside Diameter | : | 7.98 in |
| Length Through Hub | : | 4.38 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 13-1/2 in |
| Thickness | : | 1.12 in |
| Type | : | Raised Face |
| Nominal Size | : | 8 in |
| Material | : | Forged 316/316L Stainless Steel |
| Pressure Class | : | 150 lb |
| Bore Size | : | SCH 10S |
| Domestic/Import | : | Import |
