Milwaukee Valve 1150-200
Brand Name: Milwaukee Valve
- MPN: 1150-200
- ICEPN: MVC 11507
- Min Order Qty: 1
- Qty Interval: 1
-

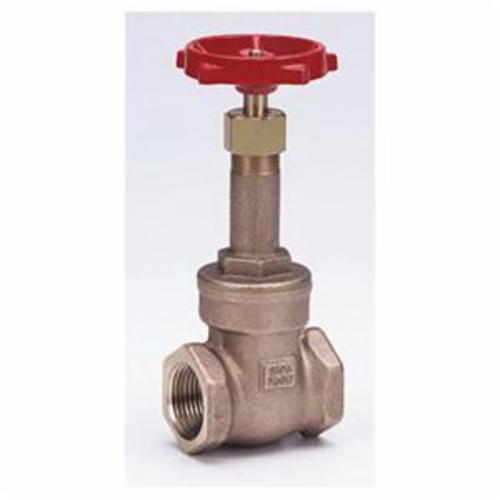

Milwaukee Valve 1150-200 Gate Valve, 2 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
-
- DESCRIPTION
- FEATURES
- 150 SWP to 300 WOG non-shock
- Solid wedge disc
- Rising stem
- Threaded bonnet
- Gland packed
- Malleable iron handwheel
- Not intended for use in potable water
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
Milwaukee Valve Gate Valve, Series: 1150, 2 in Nominal, FNPT End Style, 300 psi WOG Pressure, 150 lb Pressure Class, 406 deg F, Handwheel Actuator, 3.31 in Inlet to Outlet Length, 11-1/2 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing Softgoods, 3-3/4 in Diameter Hand Wheel, Domestic
| Hand Wheel Diameter | : | 3-3/4 in |
| Inlet to Outlet Length | : | 3.31 in |
| Pressure Rating | : | 300 psi WOG |
| Series | : | 1150 |
| Softgoods Material | : | Graphite Packing |
| Temperature Rating | : | 406 deg F |
| Top to Inlet Center | : | 11-1/2 in |
| Trim Material | : | Bronze |
| Nominal Size | : | 2 in |
| End Style | : | FNPT |
| Pressure Class | : | 150 lb |
| Body Material | : | Bronze |
| Actuator Type | : | Handwheel |
| Domestic/Import | : | Domestic |
