Spears Manufacturing 836-007
Brand Name: Spears®
- MPN: 836-007
- ICEPN: PVF 836-007
- Min Order Qty: 1
- Qty Interval: 1
-

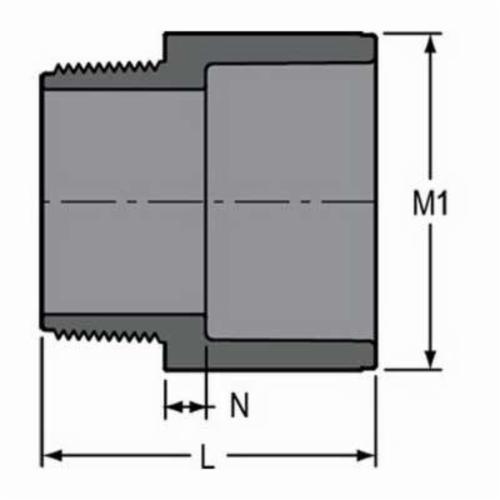

Spears® 836-007 Standard Male Adapter, 3/4 in, Socket x MNPT, SCH 80/XH, PVC, Domestic
-
- DESCRIPTION
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.
Spears® Male Adapter, Standard, Fitting/Connector Type: Adapter, 3/4 in Nominal, Socket x MNPT, 1-27/32 in Length, SCH 80/XH, 150 psi, Molded, PVC, Gray, Domestic
| Color | : | Gray |
| Length | : | 1-27/32 in |
| Method of Manufacture | : | Molded |
| Pressure Rating | : | 150 psi |
| Type | : | Standard |
| Fitting/Connector Type | : | Adapter |
| Nominal Size | : | 3/4 in |
| End Style | : | Socket x MNPT |
| Schedule Rating | : | SCH 80/XH |
| Material | : | PVC |
| Domestic/Import | : | Domestic |
