Milwaukee Valve 1152-14
Brand Name: Milwaukee Valve
- MPN: 1152-14
- ICEPN: MVC 11521
- Min Order Qty: 1
- Qty Interval: 1
-

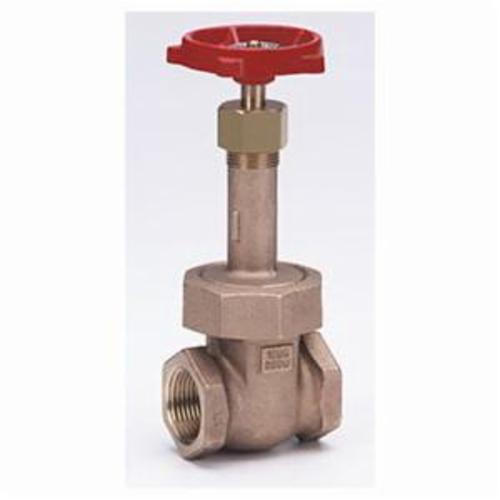

Milwaukee Valve 1152-14 Gate Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Handwheel Actuator, Domestic
-
- DESCRIPTION
- FEATURES
- 125 SWP to 200 WOG non-shock
- Solid wedge disc
- Rising stem
- Union bonnet
- Gland packed
- Malleable iron handwheel
- Not intended for use in potable water
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
Milwaukee Valve Gate Valve, Series: 1152, 1/4 in Nominal, FNPT End Style, 200 psi WOG Pressure, Handwheel Actuator, 1-3/4 in Inlet to Outlet Length, 5.13 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing Softgoods, 2 in Diameter Hand Wheel, Domestic
| Hand Wheel Diameter | : | 2 in |
| Inlet to Outlet Length | : | 1-3/4 in |
| Pressure Rating | : | 200 psi WOG |
| Series | : | 1152 |
| Softgoods Material | : | Graphite Packing |
| Top to Inlet Center | : | 5.13 in |
| Trim Material | : | Bronze |
| Nominal Size | : | 1/4 in |
| End Style | : | FNPT |
| Body Material | : | Bronze |
| Actuator Type | : | Handwheel |
| Domestic/Import | : | Domestic |
