Crane ChemPharma Energy B-66K 1
Brand Name: CRANE®
- MPN: B-66K 1
- ICEPN: STV B66-1
- Min Order Qty: 1
- Qty Interval: 1
-
CRANE® Stockham® B-66K 1 Globe Valve, 1 in Nominal, Thread End Style, 300 lb, Bronze Body, Handwheel Actuator
-
- DESCRIPTION
- FEATURES
- Bronze union bonnet
- Bronze disc
- Regrinding seat
- Valves assembled and tested in the USA
- SPECIFICATIONS
Stockham bronze valves have been specified, installed, and are proven performers in commercial and industrial facilities internationally. The broadness and unsurpassed quality of the Stockham line appeal to consulting engineers, mechanical contractors, and industrial users alike.

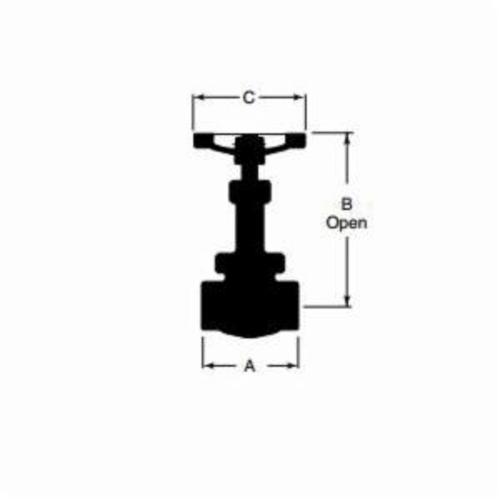

CRANE® Stockham® Globe Valve, Series: B-66, 1 in Nominal, Thread End Style, 1000 psi Pressure, 300 lb Pressure Class, -20 to 150 deg F, Handwheel Actuator, 3.32 in Inlet to Outlet Length, 5.56 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing/Synthetic or Glass Fiber Gasket Softgoods, 4.02 in Diameter Hand Wheel
| Hand Wheel Diameter | : | 4.02 in |
| Inlet to Outlet Length | : | 3.32 in |
| Pressure Rating | : | 1000 psi |
| Series | : | B-66 |
| Softgoods Material | : | Graphite Packing/Synthetic or Glass Fiber Gasket |
| Temperature Rating | : | -20 to 150 deg F |
| Top to Inlet Center | : | 5.56 in |
| Trim Material | : | Bronze |
| Nominal Size | : | 1 in |
| End Style | : | Thread |
| Pressure Class | : | 300 lb |
| Body Material | : | Bronze |
| Actuator Type | : | Handwheel |
