Apollo Conbraco 73A14501A
Brand Name: Apollo™
- MPN: 73A14501A
- ICEPN: CBR 73A14501
- Min Order Qty: 1
- Qty Interval: 1
-

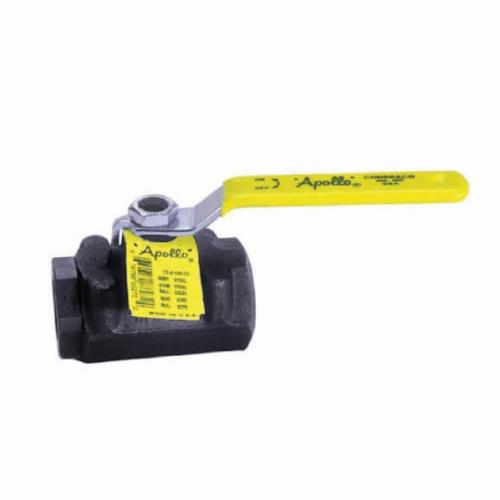

Apollo™ 73A14501A 73A-140 73A-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Carbon Steel Body, Domestic
-
- DESCRIPTION
- FEATURES
- Raised handle stops
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Vacuum service to 29 in Hg
- Zinc plated steel lever nut
- ASTM A108-CS gland nut
- ASTM A216-WCB retainer
- Zinc plated steel lever with vinyl grip
- 150 psig saturated steam
- MPTFE stem packing/body seal
- 01 - standard configuration
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
-
Apollo™ Ball Valve, 2-Piece, Series: 73A-140, 1 in Nominal, FNPT End Style, 2000 psig CWP Pressure, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 3.4 in Inlet to Outlet Length, 2.18 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | 316 Stainless Steel |
| Inlet to Outlet Length | : | 3.4 in |
| Media | : | Water |
| Pressure Rating | : | 2000 psig CWP |
| Series | : | 73A-140 |
| Top to Inlet Center | : | 2.18 in |
| Trim Material | : | 316 Stainless Steel/PTFE |
| Type | : | 2-Piece |
| Nominal Size | : | 1 in |
| End Style | : | FNPT |
| Body Material | : | Forged Carbon Steel |
| Port Type | : | Standard |
| Softgoods Material | : | MPTFE |
| Domestic/Import | : | Domestic |
