Apollo Conbraco 94A10501
Brand Name: Apollo™
- MPN: 94A10501
- ICEPN: CBR 94A-105-01
- Min Order Qty: 1
- Qty Interval: 1
-

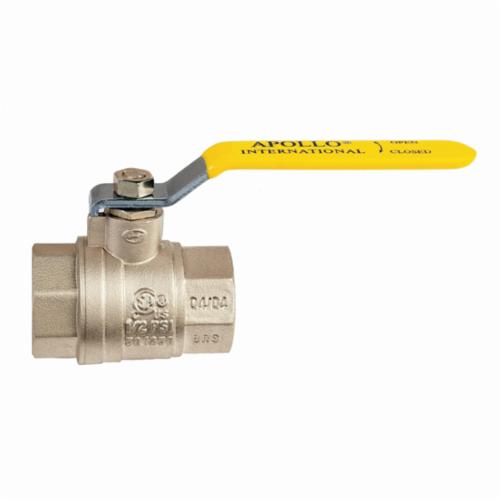

Apollo™ Apollo International™ 94A10501 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Brass Body, Full Port, PTFE Softgoods
-
- DESCRIPTION
- FEATURES
- Blow-out proof stem
- Adjustable stem packing nut
- Silicone free
- 100% factory tested
- Forged brass (Cu >57 percent) retainer
- Brass gland nut
- Corrosion resistant plated steel handle and nut
- 2-1/4 in memory stop option
- PTFE stem packing
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
-
The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.
Apollo™ Apollo International™ Ball Valve, 2-Piece, Series: 94A, 1 in Nominal, FNPT, 600 psi CWP, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, Chrome Plated Brass Ball, 2.756 in Inlet to Outlet Length, 2.559 in Top to Inlet Center, Brass Body, Chrome Plated Brass Stem and PTFE Seat Trim, PTFE
| Actuator Type | : | Lever Operated |
| Ball Material | : | Chrome Plated Brass |
| Inlet to Outlet Length | : | 2.756 in |
| Media | : | Gas |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 94A |
| Temperature Rating | : | 0 to 400 deg F |
| Top to Inlet Center | : | 2.559 in |
| Trim Material | : | Chrome Plated Brass Stem and PTFE Seat |
| Type | : | 2-Piece |
| Nominal Size | : | 1 in |
| End Style | : | FNPT |
| Body Material | : | Brass |
| Port Type | : | Full |
| Softgoods Material | : | PTFE |
| Domestic/Import | : | Domestic |
