Apollo Conbraco 8914801
Brand Name: Apollo™
- MPN: 8914801
- ICEPN: CBR 8914801
- Min Order Qty: 1
- Qty Interval: 1
-

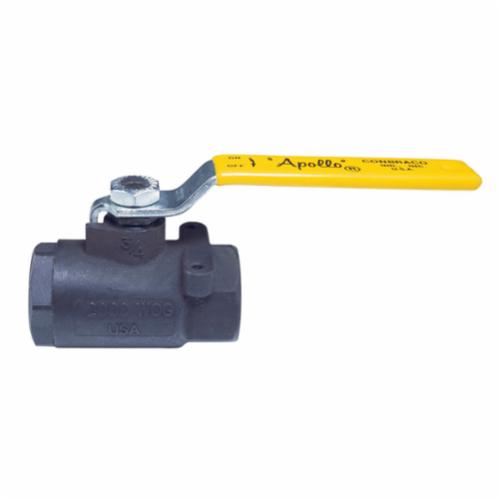

Apollo™ 8914801 89-140 89-140 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port
-
- DESCRIPTION
- FEATURES
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Zinc plated with vinyl steel lever and grip
- ASTM A216-WCB carbon steel retainer
- ASTM A108 carbon steel gland nut
- Zinc plated steel lever nut
- 150 psig saturated steam
- MPTFE stem packing and PTFE body seal
- With standard configuration
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
-
Apollo™ Ball Valve, 2-Piece, Series: 89-140, 2 in Nominal, FNPT End Style, 1500 psig CWP Pressure, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 5.43 in Inlet to Outlet Length, 3.26 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | 316 Stainless Steel |
| Inlet to Outlet Length | : | 5.43 in |
| Media | : | Water |
| Pressure Rating | : | 1500 psig CWP |
| Series | : | 89-140 |
| Top to Inlet Center | : | 3.26 in |
| Trim Material | : | 316 Stainless Steel/PTFE |
| Type | : | 2-Piece |
| Nominal Size | : | 2 in |
| End Style | : | FNPT |
| Body Material | : | Carbon Steel |
| Port Type | : | Standard |
| Softgoods Material | : | MPTFE/PTFE |
| Domestic/Import | : | Domestic |
