Apollo Conbraco 7710801
Brand Name: Apollo™
- MPN: 7710801
- ICEPN: CBR 7710801
- Min Order Qty: 1
- Qty Interval: 1
-

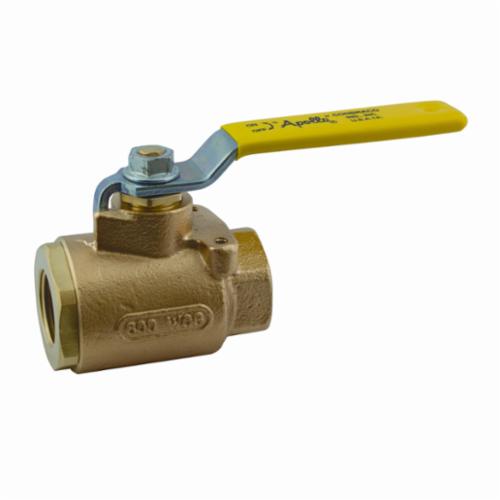

Apollo™ 7710801 77-100 77-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods
-
- DESCRIPTION
- FEATURES
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Full port for full flow and minimum pressure drop
- Hardened ball for wear resistance
- 100% factory tested
- Vacuum service to 29 in Hg
- Steel, zinc plated with vinyl lever/grip
- ASTM B16 brass retainer
- ASTM B16 brass gland nut
- Steel, zinc plated lever nut
- 150 psig saturated steam
- RPTFE stem packing
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
-
Apollo™ Ball Valve, 2-Piece, Series: 77-100, 2 in Nominal, FNPT End Style, 600 psig CWP Pressure, 500 deg F, Full Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 5.37 in Inlet to Outlet Length, 3.71 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE Softgoods, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | Chrome Plated Brass |
| Inlet to Outlet Length | : | 5.37 in |
| Media | : | Water |
| Pressure Rating | : | 600 psig CWP |
| Series | : | 77-100 |
| Temperature Rating | : | 500 deg F |
| Top to Inlet Center | : | 3.71 in |
| Trim Material | : | Brass/RPTFE |
| Type | : | 2-Piece |
| Nominal Size | : | 2 in |
| End Style | : | FNPT |
| Body Material | : | Bronze |
| Port Type | : | Full |
| Softgoods Material | : | RPTFE |
| Domestic/Import | : | Domestic |
