Apollo Conbraco 76-103-27

Brand Name: Apollo™

  • MPN: 76-103-27
  • ICEPN: CBR 7610327A
  • Min Order Qty: 1
  • Qty Interval: 1

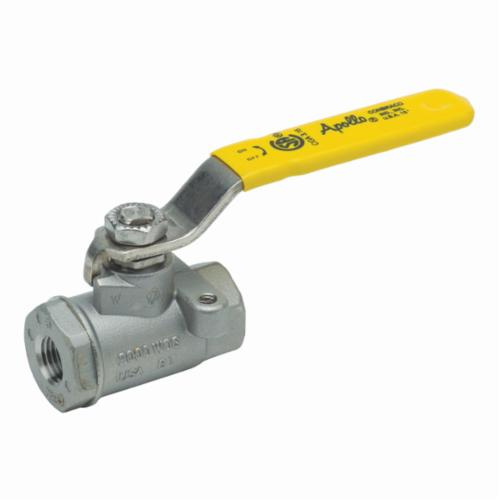

  • Apollo™ 76-103-27 76-100 2-Piece Ball Valve With Mounting Pad and Nut, 1/2 in Nominal, FNPT End Style, Stainless Steel Body, Standard Port, RMPTFE/PTFE Softgoods, Domestic

  • /ASSETS/WEB_THEMES//ICE_INC/images/loading.gif

  • DESCRIPTION
  • Apollo™ Ball Valve, 2-Piece, Series: 76-100, 1/2 in Nominal, FNPT, 2000 psi, 100 deg F, Standard Port, Media: Gas/Water, 1/2 in Orifice, Latch-Lock Lever Actuator, Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.79 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Stem and RPTFE Seat Trim, RMPTFE/PTFE, Domestic

  • FEATURES
    • Investment cast components
    • Reinforced seats
    • Mounting pad for easy actuator mounting
    • Blow-out proof stem
    • 2-ports/ways
    • A351-CF8M stainless steel retainer, A276 type 316 stainless steel gland nut, 304 stainless steel with vinyl lever and grip, 18-8 stainless steel lever nut
    • 150 psig saturated steam
    • Vacuum service to 29 in Hg
    • RMPTFE stem packing and PTFE body seal
  • SPECIFICATIONS
  • Actuator Type      :      Latch-Lock Lever
    Ball Material      :      Stainless Steel
    Inlet to Outlet Length      :      2.23 in
    Media      :      Gas/Water
    Orifice Size      :      1/2 in
    Pressure Rating      :      2000 psi
    Series      :      76-100
    Temperature Rating      :      100 deg F
    Top to Inlet Center      :      1.79 in
    Trim Material      :      Stainless Steel Stem and RPTFE Seat
    Type      :      2-Piece
    Nominal Size      :      1/2 in
    End Style      :      FNPT
    Body Material      :      Stainless Steel
    Port Type      :      Standard
    Softgoods Material      :      RMPTFE/PTFE
    Domestic/Import      :      Domestic
