Apollo Conbraco 83A14501
Brand Name: Apollo™
- MPN: 83A14501
- ICEPN: CBR 83A14501
- Min Order Qty: 1
- Qty Interval: 1
-

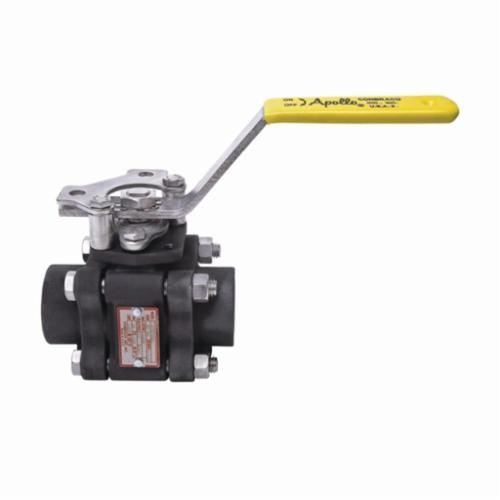

Apollo™ 83A14501 83A-140 83A-140 3-Piece Ball Valve, 1 in Nominal, FNPT End Style, Carbon Steel Body, Full Port
-
- DESCRIPTION
- FEATURES
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking
- Adjustable multi-piece PTFE "V" style packing
- Fully machined ISO 5211 mounting
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in hg
- 150 psig saturated steam
- PTFE packing and RPTFE body gasket
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
Apollo™ Ball Valve, 3-Piece, Series: 83A-140, 1 in Nominal, FNPT End Style, 1500 psi Pressure, Full Port, Media: Gas/Water, 1 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 4.19 in Inlet to Outlet Length, 4.8 in Top to Inlet Center, Carbon Steel Body, PTFE/Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | Stainless Steel |
| Inlet to Outlet Length | : | 4.19 in |
| Media | : | Gas/Water |
| Orifice Size | : | 1 in |
| Pressure Rating | : | 1500 psi |
| Series | : | 83A-140 |
| Top to Inlet Center | : | 4.8 in |
| Trim Material | : | PTFE/Stainless Steel |
| Type | : | 3-Piece |
| Nominal Size | : | 1 in |
| End Style | : | FNPT |
| Body Material | : | Carbon Steel |
| Port Type | : | Full |
| Softgoods Material | : | PTFE/RPTFE |
| Domestic/Import | : | Domestic |
