Apollo Conbraco 76F-104-27
Brand Name: Apollo™
- MPN: 76F-104-27
- ICEPN: CBR 76F10427A
- Min Order Qty: 1
- Qty Interval: 1
-

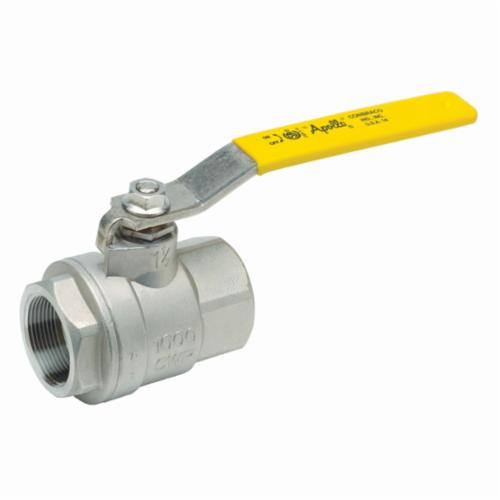

Apollo™ 76F-104-27 76F-100-A Ball Valve With Nut, 3/4 in Nominal, FNPT End Style, Stainless Steel Body, Full Port, RPTFE/MPTFE Softgoods, Domestic
-
- DESCRIPTION
- FEATURES
- Investment cast components
- MPTFE stuffing box ring
- Blow-out proof stem
- Stainless steel lever and nut
- 150 psi maximum steam pressure
- RPTFE stem bearing and MPTFE stem packing
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
Apollo™ Ball Valve, Series: 76F-100-A, 3/4 in Nominal, FNPT, 1000 psi, Full Port, Media: Gas/Water, 0.81 in Orifice, Latch-Lock Lever Actuator, Stainless Steel Ball, 3.06 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE, Domestic
| Actuator Type | : | Latch-Lock Lever |
| Ball Material | : | Stainless Steel |
| Inlet to Outlet Length | : | 3.06 in |
| Media | : | Gas/Water |
| Orifice Size | : | 0.81 in |
| Pressure Rating | : | 1000 psi |
| Series | : | 76F-100-A |
| Top to Inlet Center | : | 2.13 in |
| Trim Material | : | Stainless Steel Stem and RPTFE Seat |
| Nominal Size | : | 3/4 in |
| End Style | : | FNPT |
| Body Material | : | Stainless Steel |
| Port Type | : | Full |
| Softgoods Material | : | RPTFE/MPTFE |
| Domestic/Import | : | Domestic |
