Apollo Conbraco 7610701
Brand Name: Apollo™
- MPN: 7610701
- ICEPN: CBR 7610701
- Min Order Qty: 1
- Qty Interval: 1
-

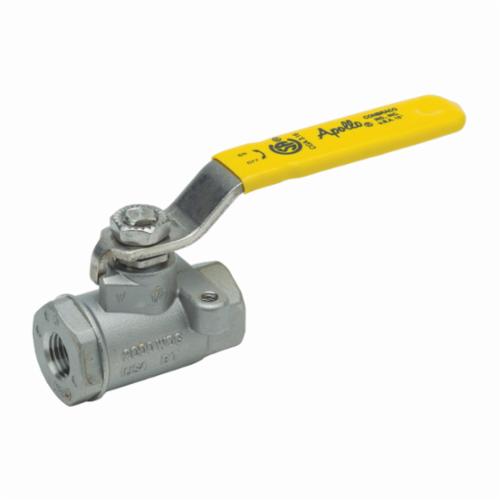

Apollo™ 7610701 76-100 76-100 2-Piece Standard Configuration Ball Valve, 1-1/2 in Nominal, FNPT End Style, Standard Port
-
- DESCRIPTION
- FEATURES
- Investment cast components
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Stainless steel lever and nut
- 304 stainless steel lever with vinyl grip
- ASTM A351-CF8M stainless steel retainer
- ASTM A276-316 stainless steel gland nut
- 150 psig saturated steam
- MPTFE stem packing and RPTFE body seal
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
-
-
-
Apollo™ Ball Valve, 2-Piece Standard Configuration, Series: 76-100, 1-1/2 in Nominal, FNPT End Style, 1500 psig CWP Pressure, Standard Port, Media: Water, Lever Operated Actuator, Stainless Steel Ball, 4.34 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Stainless Steel Body, RPTFE/Stainless Steel Trim, MPTFE/RPTFE Softgoods, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | Stainless Steel |
| Inlet to Outlet Length | : | 4.34 in |
| Media | : | Water |
| Pressure Rating | : | 1500 psig CWP |
| Series | : | 76-100 |
| Top to Inlet Center | : | 3-1/4 in |
| Trim Material | : | RPTFE/Stainless Steel |
| Type | : | 2-Piece Standard Configuration |
| Nominal Size | : | 1-1/2 in |
| End Style | : | FNPT |
| Body Material | : | Stainless Steel |
| Port Type | : | Standard |
| Softgoods Material | : | MPTFE/RPTFE |
| Domestic/Import | : | Domestic |
