Apollo Conbraco 7010227
Brand Name: Apollo™
- MPN: 7010227
- ICEPN: CBR 7010227
- Min Order Qty: 1
- Qty Interval: 1
-

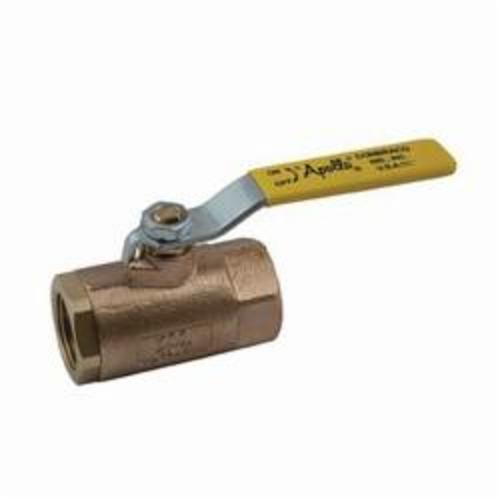

Apollo™ 7010227 70-100 2-Piece In-Line Ball Valve With Nut, 3/8 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE Softgoods, Domestic
-
- DESCRIPTION
- FEATURES
- Premium materials and heavy duty 2-piece construction
- Adjustable stem packing
- Blow-out proof stem
- 100% factory tested
- 150 psi steam pressure
- 2-Ports/Ways
- Vacuum service to 29 in hg
- Zinc plated steel lever nut
- B584-C84400 body
- PTFE body seal
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ In-Line Ball Valve, 2-Piece, Series: 70-100, 3/8 in Nominal, FNPT, 600 psi, 500 deg F, Standard Port, 0.37 in Orifice, Latch-Lock Lever Actuator, Chrome Plated Brass Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, PTFE, Domestic
| Actuator Type | : | Latch-Lock Lever |
| Ball Material | : | Chrome Plated Brass |
| Inlet to Outlet Length | : | 2.06 in |
| Orifice Size | : | 0.37 in |
| Pressure Rating | : | 600 psi |
| Series | : | 70-100 |
| Temperature Rating | : | 500 deg F |
| Top to Inlet Center | : | 1-3/4 in |
| Trim Material | : | Brass Stem and RPTFE Seat |
| Type | : | 2-Piece |
| Nominal Size | : | 3/8 in |
| End Style | : | FNPT |
| Body Material | : | Bronze |
| Port Type | : | Standard |
| Softgoods Material | : | PTFE |
| Domestic/Import | : | Domestic |
