Apollo Conbraco 76-603-01
Brand Name: Apollo™
- MPN: 76-603-01
- ICEPN: CBR 7660301
- Min Order Qty: 1
- Qty Interval: 1
-

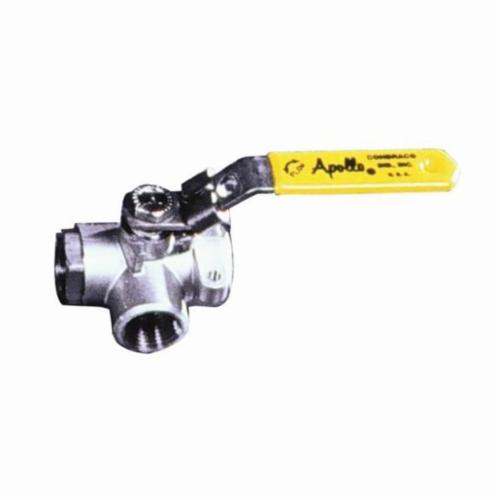

Apollo™ 76-603-01 73-600 3-Way Diversion Ball Valve, 1/2 in Nominal, FNPT End Style, Stainless Steel Body, Standard Port, MPTFE Softgoods, Domestic
-
- DESCRIPTION
- FEATURES
- Reinforced seats
- Blow-out proof stem
- Investment cast body
- 304 stainless steel with vinyl lever and grip
- ASTM A276-316 retainer
- ASTM A276-316 gland nut
- 18-8 stainless steel lever nut
- MPTFE stem packing
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
-
-
-
Apollo™ Diversion Ball Valve, 3-Way, Series: 73-600, 1/2 in Nominal, FNPT, 800 psig CWP, Standard Port, Media: Water, Lever Operated Actuator, Stainless Steel Ball, 2.32 in Inlet to Outlet Length, 1.8 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Stem and RPTFE Seat Trim, MPTFE, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | Stainless Steel |
| Inlet to Outlet Length | : | 2.32 in |
| Media | : | Water |
| Pressure Rating | : | 800 psig CWP |
| Series | : | 73-600 |
| Top to Inlet Center | : | 1.8 in |
| Trim Material | : | Stainless Steel Stem and RPTFE Seat |
| Type | : | 3-Way |
| Nominal Size | : | 1/2 in |
| End Style | : | FNPT |
| Body Material | : | Stainless Steel |
| Port Type | : | Standard |
| Softgoods Material | : | MPTFE |
| Domestic/Import | : | Domestic |
