Milwaukee Valve CL223E D 6
Brand Name: Milwaukee Valve
- MPN: CL223E D 6
- ICEPN: MVC CL223E-6
- Min Order Qty: 1
- Qty Interval: 1
-

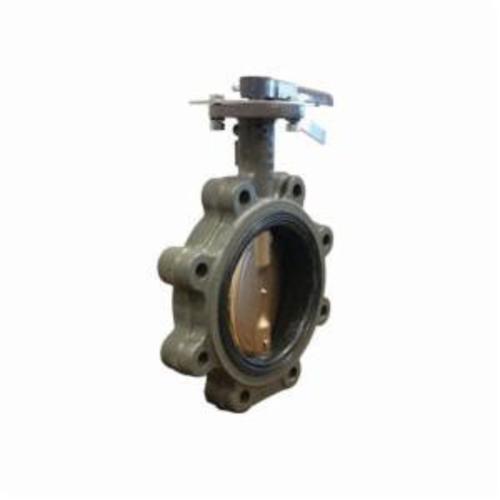

Milwaukee Valve Ultra Pure™ CL223E D 6 CL Series Lug Style Butterfly Valve, 6 in Nominal, Cast Iron Body, EPDM Softgoods, Import
-
- DESCRIPTION
- FEATURES
- 200 psig non-shock
- Bi-directional dead end service to 200 psig max
- Bubble tight shut-off
- Heavy duty design
- Phenolic cartridge design
- Low torque liner
- Low torque polymer bearing standard
- Field repairable
- Extended neck body
- Low profile disc
- Blow-out proof systems
- Vacuum rating to 29 in of mercury
- EPDM seal/stem seal/liner
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
Milwaukee Valve Ultra Pure™ Butterfly Valve, Lug Style, Series: CL Series, 6 in Nominal, Lever Handle Actuator, 8 in Top to Inlet Center, Cast Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/ Stainless Steel (Roll Pin) Stem & Pin Material, EPDM, 14.69 in H, Import
| Actuator Type | : | Lever Handle |
| Dimensions | : | 14.69 in H |
| Disc Material | : | Aluminum Bronze |
| Series | : | CL Series |
| Stem & Pin Material | : | 416 Stainless Steel (Stem)/ Stainless Steel (Roll Pin) |
| Top to Inlet Center | : | 8 in |
| Nominal Size | : | 6 in |
| Body Material | : | Cast Iron |
| Type | : | Lug Style |
| Softgoods Material | : | EPDM |
| Domestic/Import | : | Import |
