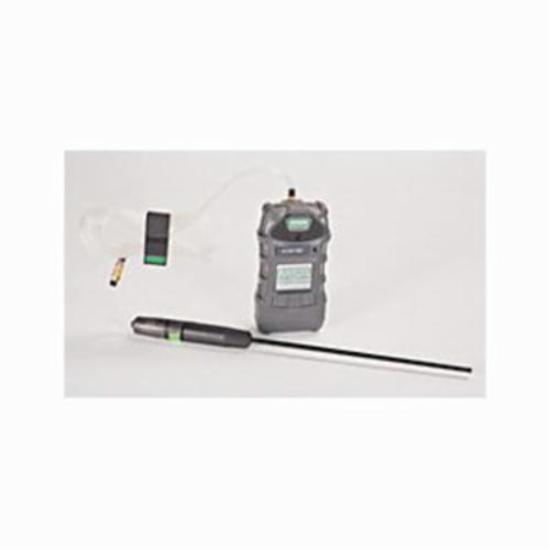

The ALTAIR® 5X gas detector is capable of measuring up to 6 gases simultaneously and is now available with integrated PID sensor for VOC detection. Driven by advanced MSA XCell® sensor Technology, the ALTAIR® 5X gas detector delivers faster response time, better stability, accuracy, longer service life and cost savings over the life of the instrument.

MSA Altair® Multi-Gas Detector, LEL, O2, CO, H2S, SO2 Gas, 0 to 25% Oxygen, 0 to 999 ppm Carbon Monoxide, 0 to 200 ppm Hydrogen Sulfide, 0 to 20 ppm Sulfur Dioxide, 0 to 100% LEL Detection, Alarm: Audible/Vibration/Visual, LCD Display, 0.1% Vol O2/1 ppm H2S/1 ppm CO/0.1 ppm SO2/1% LEL Resolution, -20 to 50 deg C Operating, Lithium-Ion Battery, Polycarbonate Housing Material, 3.11 in L x 6.535 in W x 1.969 in D Dimensions

• Detects combustible gases in LEL and/or volume percentage range, oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, ammonia, chlorine, VOCs, and many others depending upon sensor configuration
• Rugged over molded polycarbonate housing provides unsurpassed durability, including ability to survive 10 ft drop, IP65-certified
• Field proven integral pump provides consistent gas flow, eliminating concerns of externally-attached components
• Large buttons and bright display provide easy operation, even when users wear gloves
• Requires about half of test gas typically used for calibration and bump tests
• Rapid bump test gives results in less than 10 sec for most common sensor configurations
• Span calibration time of 60 sec for most common sensor configurations
• Motion alert feature option tells others that user has become immobile
• Instant alert feature provides manual alarm to alert others as to a potentially hazardous situation
• PID option allows for accurate, reliable VOC response with programmable reference factors
• Versatile MSA Link™ software allows users to transmit data to a computer
