Dixon Valve & Coupling 10HF10-S
Brand Name: Dixon®
- MPN: 10HF10-S
- ICEPN: DIX 10HF10-S
- Min Order Qty: 1
- Qty Interval: 1
-

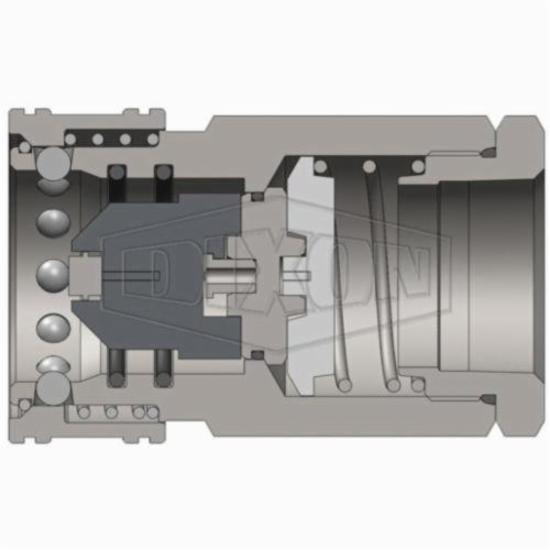

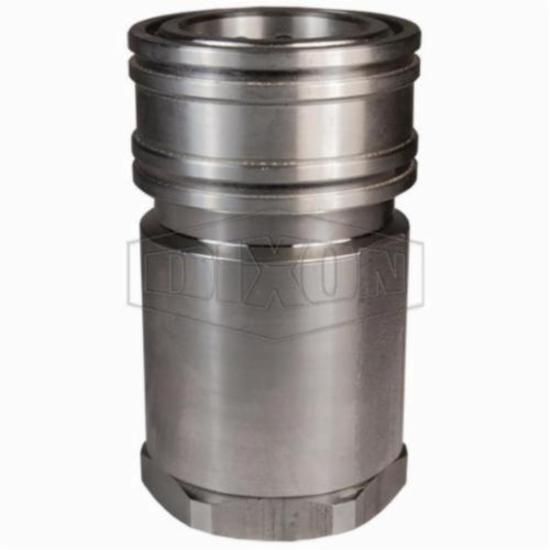

Dixon® 10HF10-S H Series Interchange High Volume Hydraulic Coupling, 1-1/4-11-1/2 Nominal, FNPT, 303 Stainless Steel
-
- DESCRIPTION
- FEATURES
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Nitrile (Buna-N) seals are standard
- Redundant O-ring sealing system (dual O-Rings/no PTFE back-up ring)
- Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
- 10000 psi burst pressure
- SPECIFICATIONS
Dixon® Hydraulic Coupling, Interchange High Volume, Series: H Series, 1-1/4-11-1/2 Nominal, FNPT, 2-3/8 in Hex, 4-1/2 in Length, 2000 psi, -40 to 250 deg F, 303 Stainless Steel, 2.6 in OD
| Dimensions | : | 2.6 in OD |
| Hex Size | : | 2-3/8 in |
| Length | : | 4-1/2 in |
| Pressure Rating | : | 2000 psi |
| Series | : | H Series |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Interchange High Volume |
| Nominal Size | : | 1-1/4-11-1/2 |
| End Style | : | FNPT |
| Material | : | 303 Stainless Steel |
