Dixon Valve & Coupling G300-F-AL
Brand Name: Dixon®
- MPN: G300-F-AL
- ICEPN: DIX G300-F-AL
- Min Order Qty: 1
- Qty Interval: 1
-

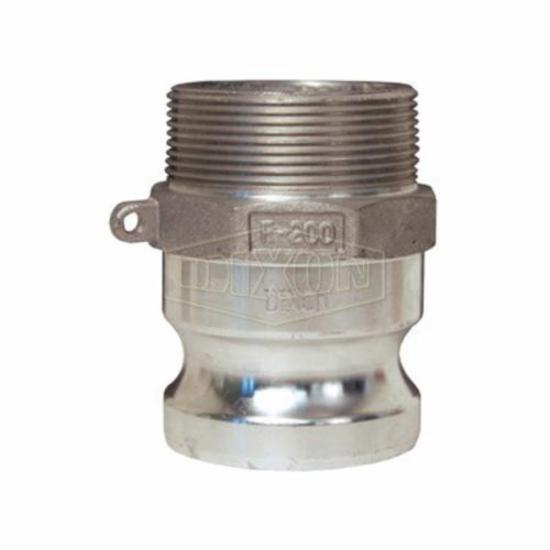

Dixon® G300-F-AL Type F Cam and Groove Adapter, 3 in, Male Adapter x MNPT, Aluminum, Import
-
- DESCRIPTION
- FEATURES
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- For use with liquid
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x MNPT, 3-15/16 in Length, 125 psi, Aluminum, 3-19/32 in Dia, Import
| Dimensions | : | 3-19/32 in Dia |
| Length | : | 3-15/16 in |
| Pressure Rating | : | 125 psi |
| Fitting/Connector Type | : | Adapter |
| Type | : | Type F |
| Nominal Size | : | 3 in |
| End Style | : | Male Adapter x MNPT |
| Material | : | Aluminum |
| Domestic/Import | : | Import |
