Dixon Valve & Coupling 79950411
Brand Name: Legris by Dixon®
- MPN: 79950411
- ICEPN: DIX 79950411
- Min Order Qty: 1
- Qty Interval: 1
-

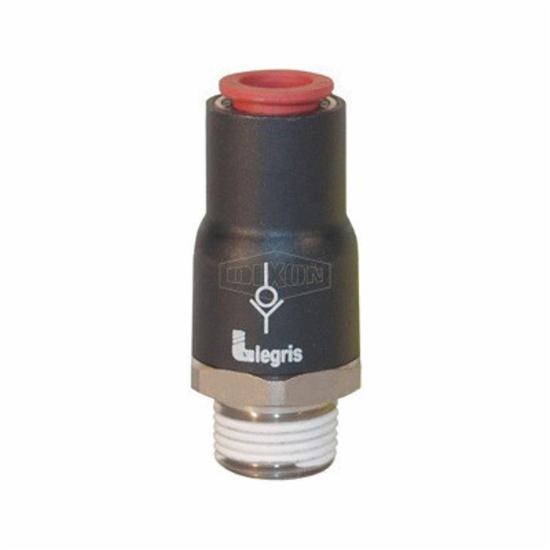

Legris by Dixon® 79950411 In-Line Check Valve, 1/8 x 5/32 in, MNPT x Tube, Nylon Body
-
- DESCRIPTION
- FEATURES
- Allows air to pass in one direction while blocking flow in the other direction
- Arrow on body of the fitting indicates direction of flow
- A pressure of more than 7 psi will overcome spring pressure keeping the valve closed, thus allowing the passage of air
- Nylon with nickel plated brass base
- Pre-applied thread sealant on tapered thread
- SPECIFICATIONS
- DOCUMENTS
-
-
-
Legris by Dixon® In-Line Check Valve, Series: 79950411, 1/8 x 5/32 in Nominal, MNPT x Tube, 15 to 145 psi, 70 deg F, Nylon Body
| Pressure Rating | : | 15 to 145 psi |
| Temperature Rating | : | 70 deg F |
| Nominal Size | : | 1/8 x 5/32 in |
| End Style | : | MNPT x Tube |
| Body Material | : | Nylon |
| Domestic/Import | : | Domestic |
