Dixon Valve & Coupling AMF32
Brand Name: Dixon®
- MPN: AMF32
- ICEPN: DIX AMF32
- Min Order Qty: 1
- Qty Interval: 1
-

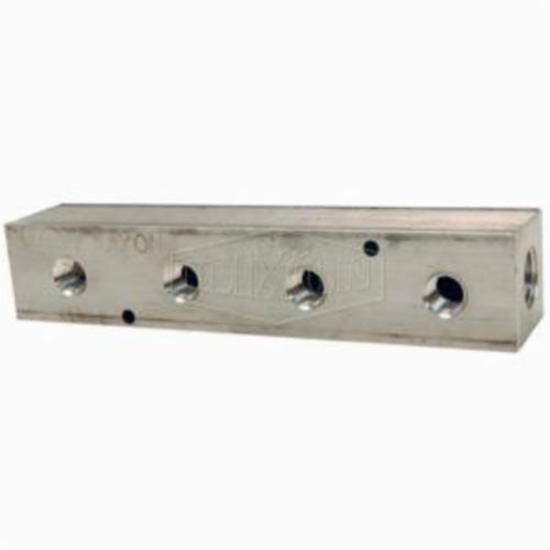

Dixon® AMF32 Bar Manifold, (1) 3/8 in NPT Inlets x (4) 1/4 in NPT Outlets, Aluminum, Domestic
-
- DESCRIPTION
- FEATURES
- Can be mounted on a wall or work bench
- Safely distributes (4) hose lines to a work area
- SPECIFICATIONS
- DOCUMENTS
-
-
-
Dixon® Bar Manifold, 4 Outlets, 1/4 in NPT Outlet, 1 Inlet, 3/8 in NPT Inlet, 300 psi, Aluminum, 7-5/8 in L x 1-1/4 in H, Domestic
| Dimensions | : | 7-5/8 in L x 1-1/4 in H |
| Pressure Rating | : | 300 psi |
| Number of Outlets | : | 4 |
| Outlet Size | : | 1/4 in NPT |
| Number of Inlets | : | 1 |
| Inlet Size | : | 3/8 in NPT |
| Material | : | Aluminum |
| Domestic/Import | : | Domestic |
