Dixon Valve & Coupling 48951414
Brand Name: Legris by Dixon®
- MPN: 48951414
- ICEPN: DIX 48951414
- Min Order Qty: 1
- Qty Interval: 1
-

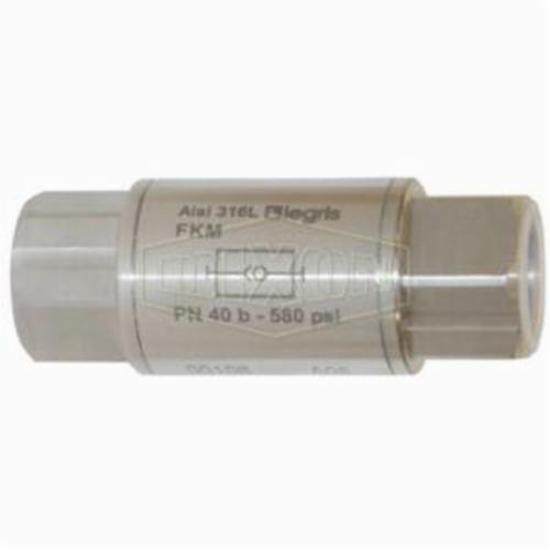

Legris by Dixon® 48951414 Uni-Directional Check Valve, 1/4 in, FNPT, 316L Stainless Steel Body, FKM Softgoods
-
- DESCRIPTION
- FEATURES
- Blocks the fluid passage when the pressure differential is lower than 3.6 psi
- 316L stainless steel shut-off valve
- 302 stainless steel return spring
- Prop65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- FKM seal
- SPECIFICATIONS
- DOCUMENTS
-
-
-
Legris by Dixon® Check Valve, Uni-Directional, 1/4 in Nominal, FNPT, 7 to 580 psi, -4 to 356 deg F, 316L Stainless Steel Body, Softgoods Material: FKM
| Pressure Rating | : | 7 to 580 psi |
| Temperature Rating | : | -4 to 356 deg F |
| Type | : | Uni-Directional |
| Nominal Size | : | 1/4 in |
| End Style | : | FNPT |
| Body Material | : | 316L Stainless Steel |
| Softgoods Material | : | FKM |
| Domestic/Import | : | Domestic |
