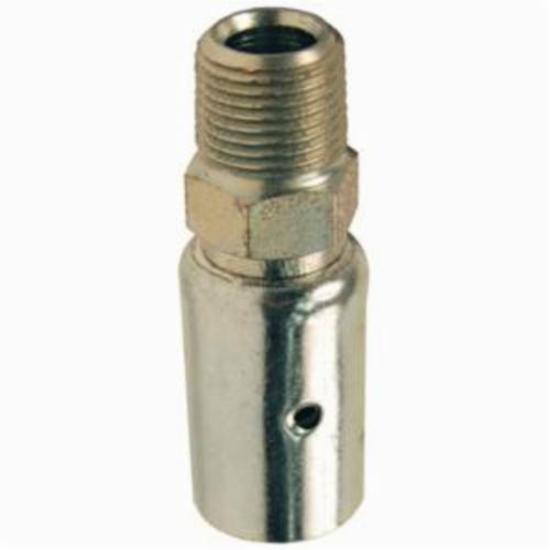

Dixon® External Swage Coupling, Uni-Range, Series: Holedall™, Fitting/Connector Type: Coupling, 1 in ID x 1-30/64 to 1-34/64 in OD Nominal, MNPT, 4-9/16 in Length, Carbon Steel, Plated, Domestic

• Designed for smaller hose systems
• Shipped complete with factory assembled stem and ferrule combination
• Can be swaged or crimped
• Stainless steel stem lengths are investment cast
• Other hose OD's available, contact Dixon
• Dixon holedall stems and ferrules are specifically designed to be used together as a coupling system
• Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon holedall products
• Do not use a wrench or vice on ferrule
• Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
• Holedall fittings are not to be used with cable reinforced high pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
• Externally swaged holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD
• Dixon's die and ferrule Recommendation guide is to be used to select correct dies and ferrules
• Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
• The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
• Media being transported through the hose should be compatible with the stem material
• Compatibility of ferrule material with the environment in which it will be used is recommended
• For applications other than the ones list, please consult Dixon
• Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
• Do not use in connection with drinking water
• Wash hands after handling
