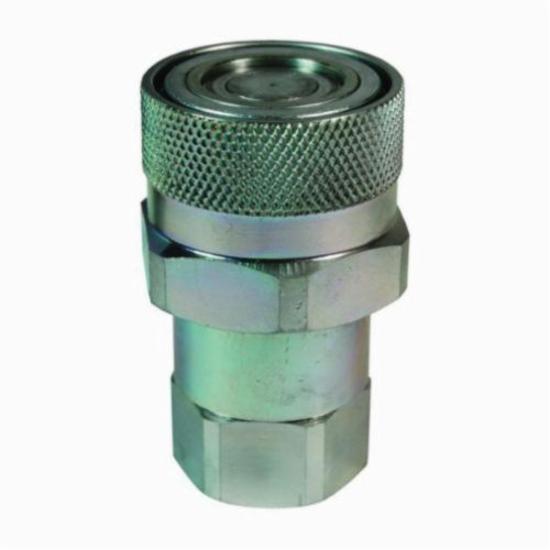

Dixon® Hydraulic Coupler, Series: VEP, 1-1/4 in x 1-1/4-11-1/2 Nominal, Hose x Female NPTF, 4.4 in Length, 5000 psi, 70 deg F, Steel, Nickel Plated Zinc, Domestic

• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
• Steel componentry is plated using ROHS compliant zinc nickel for superior corrosion resistance
• No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection
• Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures
• Two-stage valving to protect critical sealing components during pressurized connection & disconnection
• Posi-Lock valve system secures valving during surge flow conditions to prevent high-velocity damage
• TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
• Interchangeable with Stucchi VEP-P/VEP-HD series, DNP PST4/FSI series, Voswinkel ft series, Parker FET-series, and Holmbury HFT series
• Valve stems have molded polyurethane seals, with a temperature range of -65 to +212 deg F
• 2.7 in OD max
• 55 mm hex
