Dixon Valve & Coupling HU100200BW
Brand Name: Dixon®
- MPN: HU100200BW
- ICEPN: DIX HU100200BW
- Min Order Qty: 1
- Qty Interval: 1
-

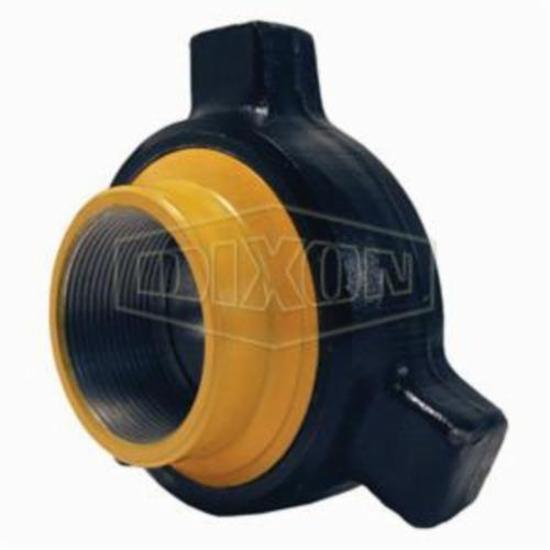

Dixon® HU100200BW 100 Standard Service Hammer Union, 2 in Nominal, Butt Welded End Style, Steel, Domestic
-
- DESCRIPTION
- FEATURES
- Hammer unions work at extremely high pressures
- Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death
- Non-shocking cold water pressure means that the rated value is the maximum operating pressure at ambient temperature
- No spikes higher than this pressure
- No instantaneous pressure increases (0 to 2000 psig in 1/4 of a s)
- Yellow sub, black nut
- SPECIFICATIONS
- DOCUMENTS
-
-
-
Dixon® Hammer Union, Standard Service, Series: 100, Union Fitting/Connector, 2 in Nominal, Butt Welded End Style, SCH 40/STD Schedule, 1000 psi Pressure, Forged Method of Manufacture, Steel, -20 to 250 deg F, Domestic/Import: Domestic
| Method of Manufacture | : | Forged |
| Pressure Rating | : | 1000 psi |
| Schedule Rating | : | SCH 40/STD |
| Series | : | 100 |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Standard Service |
| Fitting/Connector Type | : | Union |
| Nominal Size | : | 2 in |
| End Style | : | Butt Welded |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
