Dixon Valve & Coupling FFC102
Brand Name: Dixon®
- MPN: FFC102
- ICEPN: DIX FFC102
- Min Order Qty: 1
- Qty Interval: 1
-

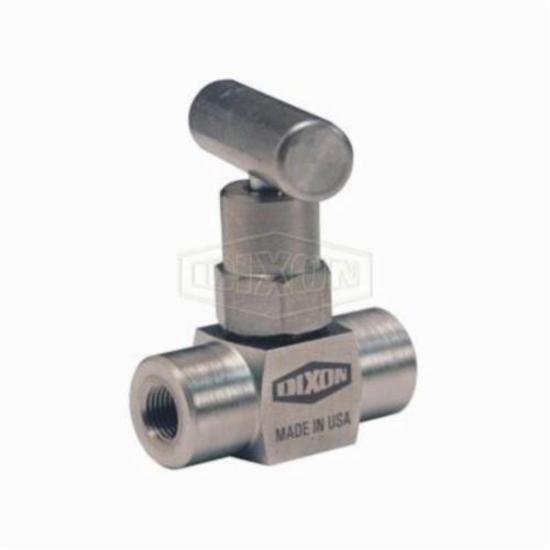

Dixon® FFC102 Mini Needle Valve, 1/4-18 Nominal, FNPT End Style, Steel Body
-
- DESCRIPTION
- FEATURES
- 0.42 flow co-efficient
- FKM o-ring seal and PTFE back-up ring below the threads protects from corrosion and galling
- Stem threads are rolled for strength and ease of operation
- Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/S at 200 psi
- 10000 psi at 200 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- SPECIFICATIONS
- DOCUMENTS
-
-
-
-
Dixon® Mini Needle Valve, 1/4-18 Nominal, FNPT, 10000 psi, T-Handle Actuator, Steel Body, Nickel Plated, 1-13/16 in L x 3/4 in W x 2-1/4 in H
| Actuator Type | : | T-Handle |
| Dimensions | : | 1-13/16 in L x 3/4 in W x 2-1/4 in H |
| Finish | : | Nickel Plated |
| Pressure Rating | : | 10000 psi |
| Nominal Size | : | 1/4-18 |
| End Style | : | FNPT |
| Body Material | : | Steel |
| Domestic/Import | : | Domestic |
