Apex Tool Group 5410335
Brand Name: Campbell®
- MPN: 5410335
- ICEPN: CAM 5410335
- Min Order Qty: 1
- Qty Interval: 1
-

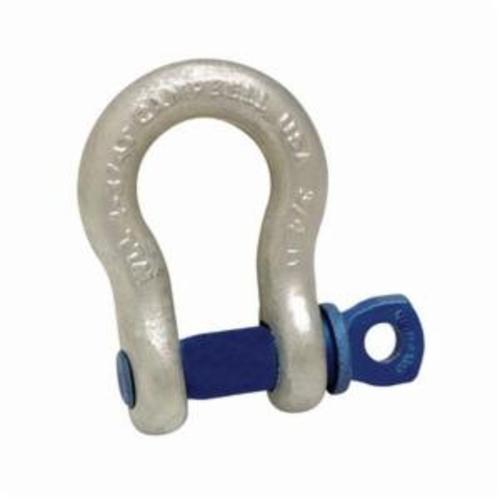

Campbell® 5410335 419 Anchor Shackle, 0.3 ton Load, 3/16 in, 1/4 in Screw Pin, Galvanized
-
- DESCRIPTION
- FEATURES
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 6:1 design factor
- Working load limit permanently shown on every shackle
- Pins and bolts are heat treated and made of alloy steel
- SPECIFICATIONS
- DOCUMENTS
Campbell® Anchor Shackle, Series: 419, 0.3 ton Load, 3/16 in Size, 1/4 in Pin Diameter, Screw Pin, 7/8 in Inner Length, 19/32 in Inner Width, 3/8 in Opening, 9/16 in Eye Outer, Drop Forged Carbon Steel Body, Alloy Steel Pin, Galvanized Finish
| Body Material | : | Drop Forged Carbon Steel |
| Eye Outer Size | : | 9/16 in |
| Inner Length | : | 7/8 in |
| Inner Width | : | 19/32 in |
| Opening Size | : | 3/8 in |
| Pin Material | : | Alloy Steel |
| Series | : | 419 |
| Load Capacity | : | 0.3 ton |
| Size | : | 3/16 in |
| Pin Diameter | : | 1/4 in |
| Pin Type | : | Screw |
| Finish | : | Galvanized |
